GLOBAL WDR CMOS SENSOR
16:9 4:3 SWITCHABLE
* picture for reference only, not taken by our camera.
INTEGRATED OSD / MIC
Integrated OSD
Integrated MIC
Package
1x Camera
1x Replaceable front case
1x Replaceable rear case
1x Aluminum bracket
1x Set of screws
1x 5pin FPV silicone cable
1x 3pin FPV silicone cable
1x 2pin extension cord for menu cable
1x OSD Key-press Board
1x Manual
Parameters

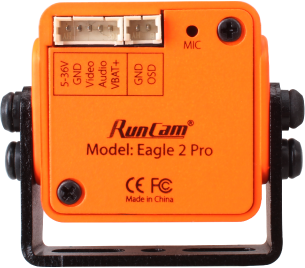

| Model | RunCam Eagle 2 Pro | ||
| Image Sensor | 1/1.8" CMOS Sensor | ||
| Horizontal Resolution | 800TVL | ||
| Lens |
|
||
| Screen Format | 16:9 / 4:3 Switchable on OSD menu | ||
| Signal System | NTSC / PAL Switchable on OSD menu | ||
| Integrated OSD | Yes | ||
| Integrated MIC | Yes | ||
| S/N Ratio | >50dB | ||
| Electronic Shutter Speed | Auto | ||
| Max Gain | 1-9 | ||
| Min. Illumination | 0.01Lux@1.2F | ||
| WDR | Global WDR | ||
| Day/Night | Auto/External/Color/B&W | ||
| Power | DC 5-36V | ||
| Working Current | 12V@90mA / 5V@200mA | ||
| Housing Material | ABS | ||
| Net Weight | 15g | ||
| Dimensions | L28mm*W26mm*H28mm |
